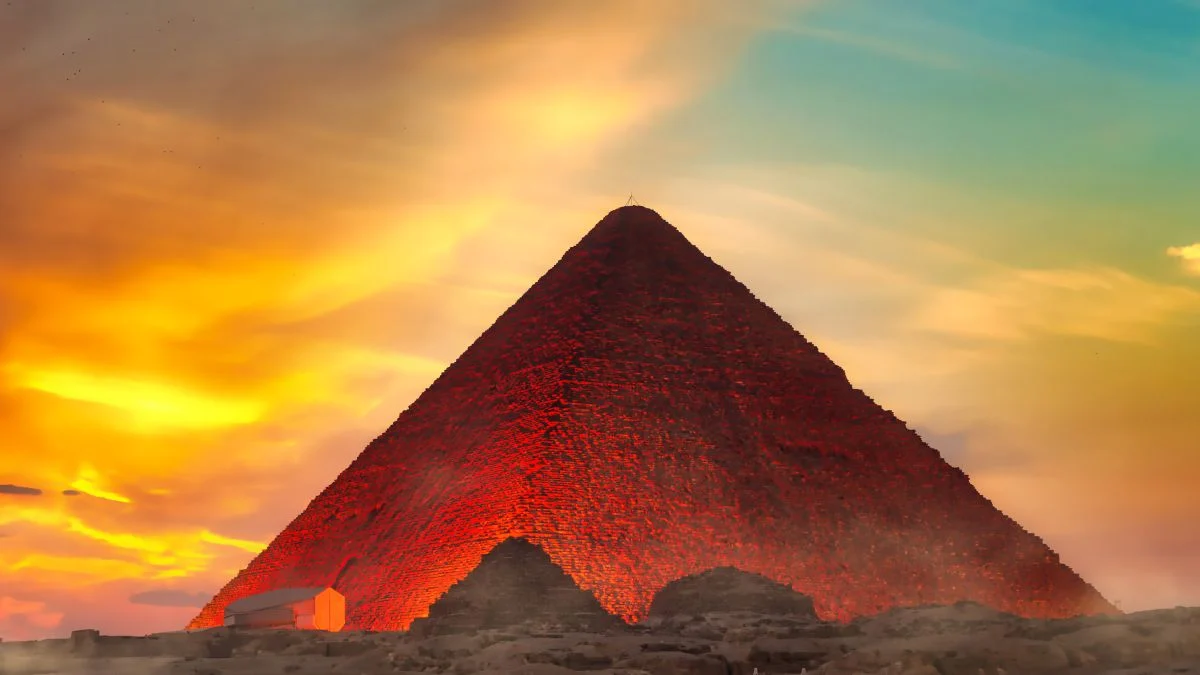

Astonishingly, amidst the widespread degradation of ancient Egyptian structures, the monumental Great Pyramid of Khufu at Giza has maintained its integrity for an impressive 4,600 years.
Despite experiencing significant seismic events and the gradual erosion of its original brilliant white limestone casing, the pyramid’s core construction persists. Its formidable granite and limestone blocks remain firmly set, giving the impression the vast edifice has recently emerged from its building phase rather than enduring gradual decay.
Archaeological scholars are still endeavoring to fully comprehend the suite of engineering innovations responsible for the Great Pyramid’s status as the sole surviving wonder of the Seven Wonders of the Ancient World.
A recent insight into the pyramid’s architectural configuration may further bolster its legacy of Egyptian engineering prowess.
New research indicates that certain structural attributes may confer surprising resilience against seismic activity, irrespective of whether its designers foresaw this benefit. Prominent among these fortifying features are the empty “relieving chambers” situated directly above the interment chamber of Pharaoh Khufu.
The construction of the Great Pyramid represented an undertaking of unparalleled magnitude. It comprises an estimated 2.3 million stone blocks, collectively weighing approximately 6 million metric tons, with some materials transported hundreds of miles to the construction site.
These blocks were meticulously positioned and interlocked, forming a largely solid mass reaching an altitude of roughly 147 meters (482 feet), containing only a limited number of internal void spaces.
As a predominantly solid structure, the pyramid exhibits exceptional sturdiness, with its mass concentrated near the base and evenly distributed. However, this characteristic alone would not render it immune to seismic damage or the passage of time.
Numerous pyramids have succumbed to partial or complete ruin. The external shell of the Meidum Pyramid, for instance, underwent a spectacular collapse in antiquity. The pyramids of Userkaf, Sahure, and Unas now resemble rudimentary heaps of debris.
Furthermore, evidence from Mesoamerica demonstrates that pyramids constructed from stone susceptible to shear forces induced by earthquakes can be fractured by subterranean tremors.
While Egypt is not a region particularly prone to seismic events, at least two significant earthquakes have been recorded within a 50-mile (80-kilometer) radius of the Great Pyramid.
In 1847, the area was shaken by an earthquake estimated at magnitude 6.8. Subsequently, in 1992, a magnitude 5.8 quake transpired, dislodging some casing stones from the upper sections of the Giza pyramid.
As the largest extant pyramid and one of the oldest structures of its kind, the Great Pyramid’s enduring presence prompted researchers to investigate the reasons behind its survival where other similar edifices have failed.
To explore this enigma, a research contingent, spearheaded by seismologist Asem Salama from Egypt’s National Research Institute of Astronomy and Geophysics, deployed vibration sensors both within and around the pyramid. The objective was to ascertain its vibrational characteristics in response to ambient environmental movements.

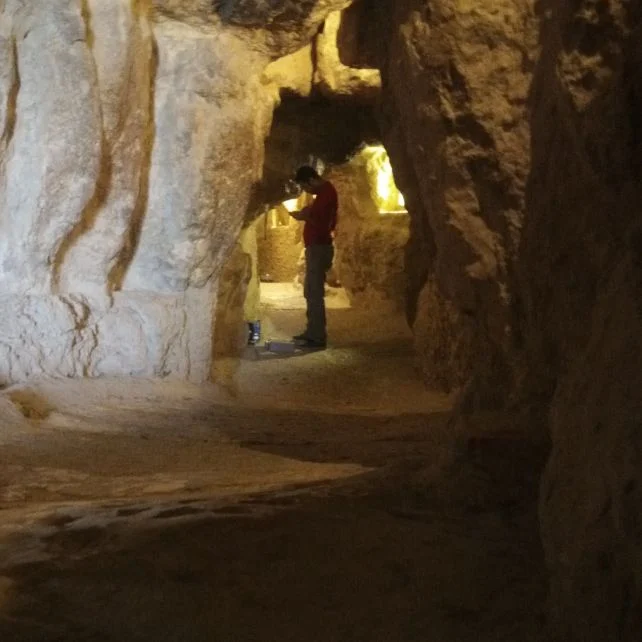

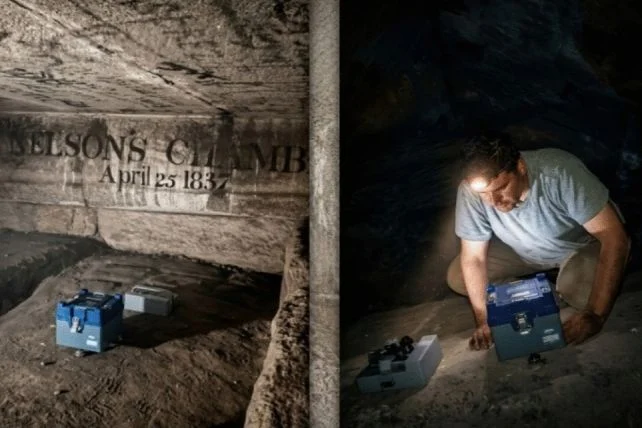

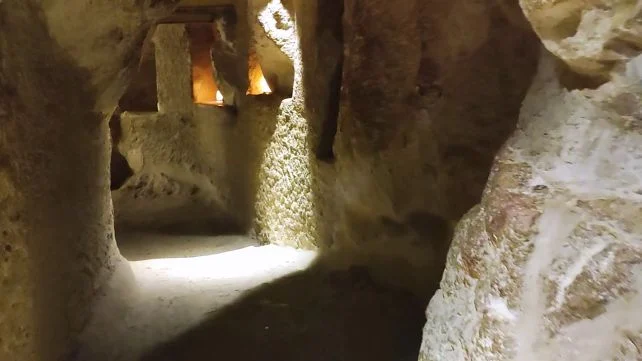

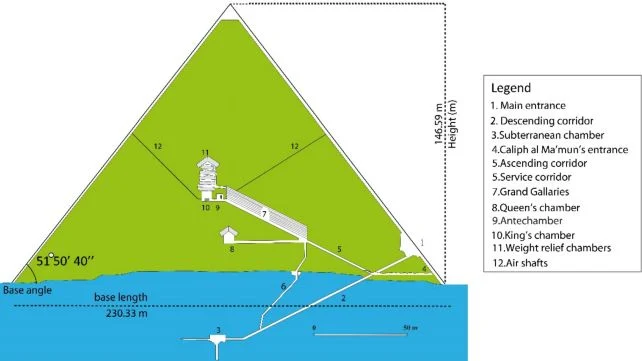

Thirty-seven portable accelerometers were strategically positioned: within the King’s Chamber and Queen’s Chamber, in the vertically aligned pressure-relieving chambers above the King’s Chamber, throughout various passages and tunnels, on the external masonry, and on the ground surrounding the monumental structure.
These instruments are designed to detect minute ambient vibrations originating from ubiquitous local sources – including distant vehicular traffic, wind currents, oceanic wave energy propagating through the Earth’s crust, and the subtle tremors constantly traversing the terrestrial crust.
On the ground surrounding the pyramid, these combined sources generated a consistent background vibrational frequency of approximately 0.6 hertz (Hz).
However, in the majority of internal locations within the pyramid, the predominant frequency registered between 2.0 and 2.6 Hz.
This divergence between the ground’s vibrational frequency and that of the pyramid itself may constitute a contributing factor to the limited damage inflicted by seismic events.
Due to this frequency differential, seismic energy may be transferred less effectively between the ground and the structure, thereby mitigating the risk of resonance amplification, a phenomenon that can lead to severe structural damage.
Notably, while the vibrational response was largely uniform throughout the pyramid, with amplitude increasing with elevation, a singular exception was observed: the relieving chambers.
These chambers are conventionally understood as mechanisms to alleviate the immense load exerted upon the King’s Chamber. Within these specific chambers, a marked reduction in vibrational amplification was recorded, indicating that these spaces also play a role in stress redistribution and vibration dampening.
While their primary function may have been structural load management, this discovery suggests that these internal void spaces might have unintentionally contributed to the pyramid’s seismic resilience.
The pyramid, characterized by its robust, dense, and solid construction, behaves in a manner fundamentally different from contemporary earthquake-resistant building designs, which predominantly emphasize structural flexibility.
The research team emphasizes that any assertion of intentional seismic resistance in the pyramid’s original design remains speculative at this juncture, although they appear motivated to seek corroborating evidence.
“These findings furnish persuasive quantitative data suggesting that ancient Egyptian architects possessed a sophisticated understanding of geotechnical principles, optimizing structural design and site characterization to ensure millennial-scale stability against seismic hazards,” the researchers documented in their publication.
In subsequent research endeavors, the team intends to conduct further measurements at key locations exhibiting minor anomalies, with the conviction that their outcomes will “authenticate the Khufu Pyramid as both an architectural masterpiece and a testament to ancient seismic engineering principles relevant to contemporary geoheritage preservation.”
The research findings have been officially disseminated in the journal Scientific Reports.
