When a rotorcraft’s blades approach the velocity of sound, circumstances can indeed become rather precarious.
Beyond approximately Mach 0.8, phenomena such as shock waves, increased drag, flow instability, and turbulence combine to generate substantial forces atypical of lower velocities.
On our home planet, these challenges are typically addressed through rigorous empirical testing and innovative engineering solutions. However, the development of an aerial vehicle engineered for the unique atmospheric conditions of Mars presents a distinct set of complexities.
Perseverance’s Ingenuity helicopter operated exclusively within the subsonic range, remaining below roughly Mach 0.7. This deliberate selection was enacted to circumvent potentially mission-compromising aerodynamic anomalies on humanity’s inaugural powered aircraft designed for extraterrestrial deployment.
The subsequent generation of Mars helicopter, presently undergoing development as part of the SkyFall initiative, is poised for more ambitious performance. Within a simulated Martian atmospheric environment, NASA engineers have propelled the rotor systems to Mach 1.08, a velocity that significantly broadens the operational envelope for future rotorcraft.
“The successful validation of these rotor designs marked a pivotal advancement in demonstrating the viability of flight within more challenging environmental parameters, a critical element for forthcoming vehicle generations,” states aerodynamicist Shannah Withrow-Maser from NASA’s Ames Research Center in Silicon Valley.
“Our initial projections indicated that achieving Mach 1.05 would be a considerable success, yet we attained Mach 1.08 during our final testing phases. We are still meticulously analyzing the acquired data, and there is a distinct possibility that further increases in thrust are achievable. These next-generation rotorcraft are anticipated to be truly remarkable.”
Notwithstanding the shared characteristics between Earth and Mars, even minor divergences in atmospheric stratification can profoundly influence an aircraft’s behavior. These disparities are not insignificant; Mars possesses an exceedingly tenuous atmosphere, measuring a mere 1 to 2 percent of Earth’s atmospheric density.

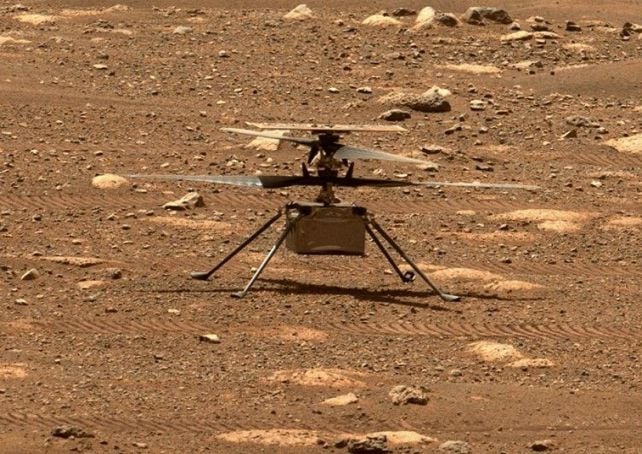

Ingenuity, which arrived on Mars concurrently with the Perseverance rover in January 2021, represented a pioneering experimental effort to ascertain the feasibility of rotor-powered flight on the Red Planet, while also gathering crucial performance data to inform future helicopter designs.
Initially scheduled for a mere five flights, the drone ultimately completed an astonishing 72 sorties before its unfortunate landing incident in 2024. This cessation of operations was not attributable to its flight mechanisms but rather to an inability to accurately ascertain its ground proximity during descent.
The inherently conservative design parameters of the initial mission were instrumental, providing Earth-based engineers with invaluable insights into Martian aerodynamics, which could then be integrated into novel aerial vehicle architectures. In essence, Ingenuity laid the groundwork for SkyFall’s more ambitious endeavors.
“As Chuck Yeager might attest, flight dynamics can become notably unpredictable in proximity to Mach 1,” remarks engineer Jaakko Karras of NASA’s Jet Propulsion Laboratory (JPL).
“Bearing this principle in mind, we meticulously planned Ingenuity’s flight profiles to maintain rotor blade tip velocities at Mach 0.7 under quiescent atmospheric conditions, thereby ensuring that any encountered Martian headwinds would not propel the blade tips into supersonic regimes.
“However, our objective is to enhance the performance capabilities of our next-generation Martian aircraft. It was imperative to establish the safety and efficacy of our rotor systems at elevated velocities.”
Due to the significantly reduced density of the Martian atmosphere compared to Earth’s, the sonic threshold, designated as Mach 1, is encountered at a considerably lower airspeed – approximately 869 kilometers per hour (540 miles per hour), in contrast to 1,225 kilometers per hour (761 miles per hour) at terrestrial sea level.

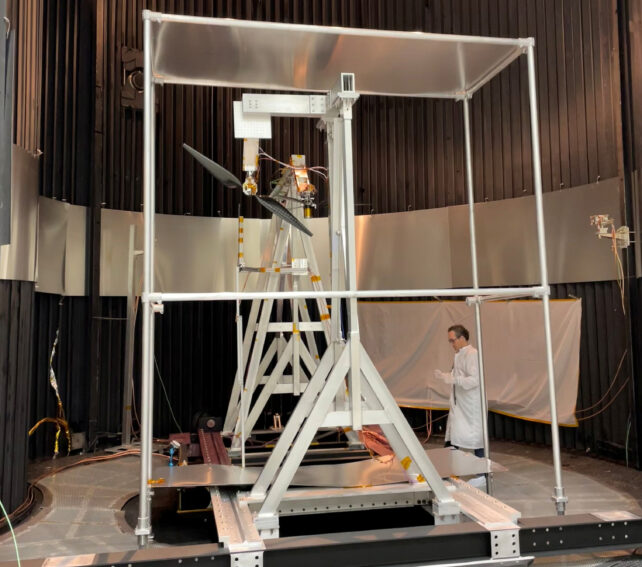

To facilitate the rigorous assessment of their rotor designs, JPL has developed a specialized environmental chamber. This apparatus is designed to reduce internal air pressure, thereby simulating the atmospheric conditions prevalent on Mars. Furthermore, it is reinforced to mitigate any potential hazards, ensuring that a fracturing blade would not pose a risk of becoming a projectile and causing damage.

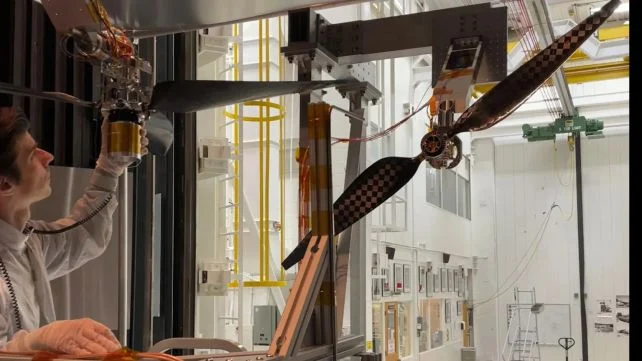

Within this controlled environment, the engineering team meticulously evaluated two distinct rotor configurations – one featuring three blades and another with two blades – while closely observing the tests from an adjacent control room.
The triple-bladed rotor assembly achieved rotational speeds of up to 3,750 revolutions per minute (rpm), resulting in blade tip velocities reaching Mach 0.98.
The dual-bladed rotor, characterized by its extended blade length, required a rotational rate of approximately 3,570 rpm to attain the identical Mach 0.98 velocity. For comparative context, Ingenuity’s rotor blades never surpassed 2,700 rpm.
Subsequently, a fan integrated within the chamber was activated, generating simulated headwinds directed at the rotor assemblies. Ultimately, the rotor tips successfully achieved a maximum velocity of Mach 1.08.
This significant advancement translates to an approximate 30 percent increase in lift capability, empowering the subsequent generation of helicopters to transport more substantial payloads than Ingenuity was capable of. Consequently, a greater complement of scientific instrumentation can be integrated into these future missions.
Contingent upon adherence to projected timelines, the SkyFall mission is slated for launch towards the conclusion of 2028, carrying an array of three helicopters, as reported by NASA.
These rotorcraft are intended to facilitate reconnaissance for prospective human landing zones and to conduct subsurface mapping of water ice deposits on the Martian surface.
